class html_form_dynamic_table web user dynamically add new lines in a table More...

#include <html_form_dynamic_table.hpp>

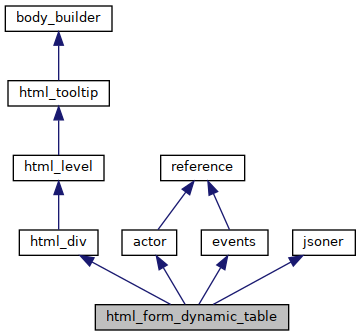

Inheritance diagram for html_form_dynamic_table:

[legend]

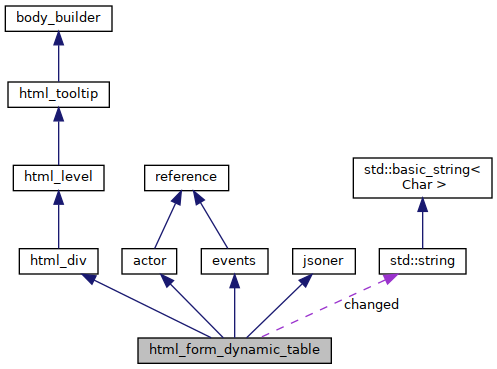

Collaboration diagram for html_form_dynamic_table:

[legend]

Classes
class	iterator

Public Member Functions
	html_form_dynamic_table (bool has_left_labels, bool selector_below, const std::string &adder_text, const std::string &adder_default_choice)
	default event name for all object of this clas More...

	html_form_dynamic_table (const html_form_dynamic_table &ref)=delete

	html_form_dynamic_table (html_form_dynamic_table &&ref) noexcept=delete

html_form_dynamic_table &	operator= (const html_form_dynamic_table &ref)=delete

html_form_dynamic_table &	operator= (html_form_dynamic_table &&ref) noexcept=delete

iterator	begin () const

iterator	end () const

iterator	last () const

bool	empty () const
	whether the current dynamic_table is empty

void	set_obj_type_provider (const html_form_dynamic_table_object_provider *provider)
	define a object provider More...

const html_form_dynamic_table_object_provider *	get_current_provider () const
	get the current object provider

void	set_obj_type_context (const std::string &ctxt)
	set context passed to the object provider More...

void	add_obj_type (const std::string &label)
	add a new object type to be proposed to the user from the "adder" selector More...

void	clear_obj_type ()
	clear all object types added by mean of add_obj_type

unsigned int	obj_type_size () const
	return the number of object type available to the user

void	clear ()
	clear table content

void	add_line (unsigned int typenum)
	manually add an line in the table with the object type give in number More...

virtual void	load_json (const json &source) override
	inherited from jsoner More...

virtual json	save_json () const override
	inherited from jsoner More...

virtual void	clear_json () override
	inherited from jsoner More...

virtual void	on_event (const std::string &event_name) override
	inherited from actor More...

void	css_border_collapsed (bool mode)
	exposed css method from underlying html_table

void	set_css_class_first_row (const std::string &val)
	exposed css method from underlying html_table

void	set_css_class_first_row ()
	exposed css method from underlying html_table

void	set_css_class_first_column (const std::string &val)
	exposed css method from underlying html_table

void	set_css_class_first_column ()
	exposed css method from underlying html_table

void	set_css_class_cells (const std::string &val)
	exposed css method from underlying html_table

void	set_css_class_cells ()
	exposed css method from underlying html_table

Public Member Functions inherited from html_div
	html_div (const html_div &ref)=delete

	html_div (html_div &&ref) noexcept=delete

html_div &	operator= (const html_div &ref)=delete

html_div &	operator= (html_div &&ref) noexcept=delete

Public Member Functions inherited from html_level
	html_level (const html_level &ref)=delete

	html_level (html_level &&ref) noexcept=delete

html_level &	operator= (const html_level &ref)=delete

html_level &	operator= (html_level &&ref) noexcept=delete

void	adopt_static_html (const std::string &html)
	used in concurrency with body_builder::adopt()

void	clear_children ()
	clear all adopted data

Public Member Functions inherited from html_tooltip
	html_tooltip ()

	html_tooltip (const html_tooltip &ref)=default

	html_tooltip (html_tooltip &&ref) noexcept=delete

html_tooltip &	operator= (const html_tooltip &ref)=default

html_tooltip &	operator= (html_tooltip &&ref) noexcept=delete

const std::string &	get_tooltip () const
	get the helper string to show as popup

void	set_tooltip (const std::string &helper)
	set the helper to the tooltip (helper popup)

Public Member Functions inherited from body_builder
	body_builder ()
	constructor

	body_builder (const body_builder &ref)
	copy constructor More...

	body_builder (body_builder &&ref) noexcept=delete
	move constructor More...

body_builder &	operator= (const body_builder &ref)
	assignment operator drops all existing children More...

body_builder &	operator= (body_builder &&ref) noexcept=delete
	move operator More...

virtual	~body_builder ()
	the (virtual) destructor

void	set_prefix (const chemin &prefix)

void	adopt (body_builder *obj)

bool	is_adopted () const
	whether the object has currently a parent (= is adopted)

void	foresake (body_builder *obj)

void	set_visible (bool mode)
	ask for the object to become visible in HTML page or temporarily hidden More...

bool	get_visible () const
	returns the current visible status of the object More...

bool	get_visible_recursively () const
	return the effective visible status of an object taking into account all of ancestors that adopted it

void	add_css_class (const std::string &name)
	set this object with a additional css_class (assuming it is defined in a css_library available for this object)

void	add_css_class (const css_class_group &cg)
	set this object with an additional set of css_classes (assuming they are all defined in a css_library available for this object)

bool	has_css_class (const std::string &name) const
	check the presence of the given class name

void	remove_css_class (const std::string &name)
	remove the provided css_class name from the list of css_class names this object has been assigned to

void	remove_css_class (const css_class_group &cg)
	remove the provided css_class_group from the list

void	clear_css_classes ()
	clear the whole list of css_class names

const std::set< std::string > &	get_css_classes_as_a_set () const
	provide the list of css_class names that this object has been set with

css_class_group	get_css_class_group () const
	provide the list of css_class names as a css_class_group

std::string	get_css_classes (const std::string &extra="") const
	return the class_name as inlined css, suitable to be added in a html marker More...

void	define_css_class_in_library (const css_class &csscl)

void	define_css_class_in_library (const std::string &name, const css &cssdef)

bool	is_css_class_defined_in_library (const std::string &name) const
	check whether a css_class of given name already exists in a reachable css_library

std::string	get_body_part (const chemin &path, const request &req)

void	ignore_body_changed_from_my_children (bool mode)
	ignore my_body_part_has_changed() invoked from adopted children and myself More...

bool	get_ignore_body_changed_from_my_children () const
	get the current status of ignore_body_changed_from_my_children()

void	set_no_CR (bool no_cr=true)
	ask for the implementation not to add a new line after this control More...

void	assign_anchor (bool mode)
	assign an anchor to this object (the object's inherited_get_body_part() will be wrapped into an HTML anchor: ) More...

std::string	get_assigned_anchor () const
	return the anchor value that has been assiged to this object (without the leading #) More...

virtual void	bind_to_anchor (const std::string &val)
	ask inherited components to use this anchor in case they redirect to an new URL or generate new URLs within their body part. More...

Public Member Functions inherited from actor
	actor (const actor &ref)=default

	actor (actor &&ref) noexcept(false)=default

actor &	operator= (const actor &ref)=default

actor &	operator= (actor &&ref) noexcept(false)

virtual void	on_event (const std::string &event_name)=0
	implementation in inherited class of the action triggered by the event given in argument More...

Public Member Functions inherited from reference
	reference ()
	usual constructor

	reference (const reference &ref)
	copy constructor More...

	reference (reference &&ref) noexcept(false)
	move constructor (only operational for objects without peering) More...

reference &	operator= (const reference &ref)
	assignment operator (only operational for objects without peering) More...

reference &	operator= (reference &&ref) noexcept(false)
	move assigment operator More...

virtual	~reference ()
	destructor

void	peer_with (reference *obj)
	method used to create a relation between two objects More...

void	break_peer_with (reference *obj)
	break the peering with the object given as argument

bool	is_peer (reference *obj) const
	whether a peering exists with that object

bool	is_empty () const
	whether the current object has peering

unsigned int	size () const
	the number of peers

Public Member Functions inherited from events
	events (const events &ref)
	copy constructor More...

	events (events &&ref) noexcept(false)=default

events &	operator= (const events &ref)=default

events &	operator= (events &&ref) noexcept(false)

void	record_actor_on_event (actor *ptr, const std::string &name)
	record an actor for an given event

Public Member Functions inherited from jsoner
	jsoner (const jsoner &ref)=default

	jsoner (jsoner &&ref) noexcept(false)=default

jsoner &	operator= (const jsoner &ref)=default

jsoner &	operator= (jsoner &&ref) noexcept(false)=default

virtual void	load_json (const json &source)=0
	setup the components from the json provided information More...

virtual json	save_json () const =0
	produce a json structure from the component configuration More...

virtual void	clear_json ()=0
	instruct the object to get to its default/initial configuration More...

Static Public Attributes
static const std::string	changed = "html_form_dynamic_table_changed"

Protected Member Functions
virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited methods from body_builder More...

virtual void	new_css_library_available () override
	inherited from body_builder More...

virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited from body_builder More...

Protected Member Functions inherited from html_level
virtual void	has_adopted (body_builder *obj) override
	inherited from body_builder More...

virtual void	will_foresake (body_builder *obj) override
	inherited from body_builder More...

void	reset_read_next ()

bool	read_next (bundle &bdl) const
	return false if bdl could not be set (nor more entry to read)

std::string	get_body_part_from_children_as_a_block (const chemin &path, const request &req)

virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited from body_builder More...

Protected Member Functions inherited from html_tooltip
virtual void	new_css_library_available () override
	inherited from body_builder More...

virtual void	has_adopted (body_builder *obj)
	inherited from body builder More...

std::string	get_tooltip_body_part () const

Protected Member Functions inherited from body_builder
virtual std::string	inherited_get_body_part (const chemin &path, const request &req)=0
	implementation of get_body_part() method for inherited classes More...

void	my_body_part_has_changed ()
	let a class record a change in what inherited_get_body_part() would return if it was called again with the same request More...

virtual void	my_visibility_has_changed ()
	available for inherited class to be informed when their visibility changes More...

bool	has_my_body_part_changed () const
	obtain the body_part changed status More...

chemin	get_path () const
	return the path of 'this' according to its descent in the body_builder tree of adopted children

std::string	get_recorded_name () const

void	store_css_library ()
	this creates a css_library accessible from adopted objects to hold html class definitions More...

bool	has_local_css_library () const
	return true if this object has a css_library locally stored (not from a adopter object)

std::unique_ptr< css_library > &	lookup_css_library () const
	lookup toward registered parent body_builder object for the closest stored css_library More...

std::string	get_body_part_from_target_child (const chemin &path, const request &req)

std::string	get_body_part_from_all_children (const chemin &path, const request &req)

virtual void	path_has_changed ()
	For inherited classes, called when the path has changed,. More...

virtual void	has_adopted (body_builder *obj)
	Be informed that a new child has been adopted. More...

virtual void	will_foresake (body_builder *obj)
	Be informed that a child is about to be foresaken. More...

virtual void	has_been_adopted_by (body_builder *obj)
	Be informed that we have been adopted by obj, our new parent.

virtual void	will_be_foresaken_by (body_builder *obj)
	Be informed that we are about to be foresaken by obj, our soon former parent.

virtual void	css_classes_have_changed ()
	Be informed about css class modification. More...

virtual void	new_css_library_available ()

unsigned int	size () const
	access to adopted childs

body_builder *	operator[] (unsigned int i)
	access to adopted childs

body_builder *	get_parent () const
	return the parent object or nullptr if no object has adopted this object

template<class T >
void	closest_ancestor_of_type (T *&ancestor)
	access to the closest ancestor (parent) matching (dynamic_cast) the provided type More...

void	orphan_all_children ()
	orphan all adopted children

bool	get_no_CR () const
	true if it has been requested no to add Carriage Return after the HTML object

Protected Member Functions inherited from reference
virtual void	broken_peering_from (reference *obj)
	to be informed when a peer has broke the peering with me More...

void	reset_read_peers () const
	reset the peers reading

bool	read_next_peer (reference *&peer) const

Protected Member Functions inherited from events
virtual void	broken_peering_from (reference *obj) override
	inherited from class reference More...

void	register_name (const std::string &name)
	add a new event for actors to register against

void	unregister_name (const std::string &name)
	remove an event and remove all actors that registed on it

void	rename_name (const std::string &old_name, const std::string &new_name)
	rename an event and keep all existing peering to this new event More...

void	act (const std::string &name)
	trigger a given event

Friends
class	html_form_dynamic_table::iterator

Additional Inherited Members
Static Protected Member Functions inherited from jsoner
static json	wrap_config_with_json_header (unsigned int version, const std::string &class_id, const json &config)
	given a version, class_id and configuration generates the global and common json structure More...

static json	unwrap_config_from_json_header (const json &source, unsigned int &version, std::string &class_id)
	from a given json global and common json structure split header parts and return the config part More...

Static Protected Attributes inherited from jsoner
static constexpr const char *	jsoner_version_label = "version"

static constexpr const char *	jsoner_id_label = "class_id"

static constexpr const char *	jsoner_config_label = "config"

Detailed Description

class html_form_dynamic_table web user dynamically add new lines in a table

The possible type of lines of the table are defined by the developper user of this class but this is the web user that defined the table content based on the available types

this html components is consitued of:

+----html_table-----------------------------+-------+
|       |                                   |       |
|+-----+|+-------------------------------+  |+-+    |
||label|||body_builder objet             |  || | del|
|+-----+|+--------------------------------  |+-+    |
|+-----+|+-------------------------------+  |+-+    |
||label|||body_builder objet             |  || | del|
|+-----+|+--------------------------------  |+-+    |
|+-----+|+-------------------------------+  |+-+    |
||label|||body_builder objet             |  || | del|
|+-----+|+--------------------------------  |+-+    |
|+-----+|+-------------------------------+  |+-+    |
||label|||body_builder objet             |  || | del|
|+-----+|+--------------------------------  |+-+    |
|+-----+|+-------------------------------+  |+-+    |
||label|||body_builder objet             |  || | del|
|+-----+|+--------------------------------  |+-+    |
+-------+-----------------------------------+-------+

+---------------------+
|  add drop down list | (or html_button if only one type to add
+---------------------+ (option to position the button before the table or after)

Note: this component must be adopted by an html_form; the programmer should set an object provider to create object component of the requested type by the user.

Constructor & Destructor Documentation

◆ html_form_dynamic_table()

html_form_dynamic_table::html_form_dynamic_table	(	bool	has_left_labels,
		bool	selector_below,
		const std::string &	adder_text,
		const std::string &	adder_default_choice
	)

default event name for all object of this clas

constructor

Parameters

has_left_labels	whether to display label on a left column
selector_below	whether the selector is above or below the table
adder_text	fixed label shown beside the add drop list
adder_default_choice	default choice in the drop list

Member Function Documentation

◆ add_line()

void html_form_dynamic_table::add_line ( unsigned int typenum )

manually add an line in the table with the object type give in number

Note: this is only needed to build programmatically the dynamic_table, but a dynamic_table is more than a table, it is dynamic in the sense that this through user action in web interface that normally this method is invoked to add (but also remove) lines to the table

◆ add_obj_type()

void html_form_dynamic_table::add_obj_type ( const std::string & label )

add a new object type to be proposed to the user from the "adder" selector

Parameters

[in] label the column number for this object (starts at zero)

◆ clear_json()

void html_form_dynamic_table::clear_json ( )

overridevirtual

inherited from jsoner

Implements jsoner.

◆ inherited_get_body_part()

string html_form_dynamic_table::inherited_get_body_part	(	const chemin &	path,
		const request &	req
	)

overrideprotectedvirtual

inherited methods from body_builder

Reimplemented from html_div.

◆ load_json()

void html_form_dynamic_table::load_json ( const json & source )

overridevirtual

inherited from jsoner

Implements jsoner.

◆ new_css_library_available()

void html_form_dynamic_table::new_css_library_available ( )

overrideprotectedvirtual

inherited from body_builder

Reimplemented from html_tooltip.

◆ on_event()

void html_form_dynamic_table::on_event ( const std::string & event_name )

overridevirtual

inherited from actor

Implements actor.

◆ save_json()

json html_form_dynamic_table::save_json ( ) const

overridevirtual

inherited from jsoner

Implements jsoner.

◆ set_obj_type_context()

void html_form_dynamic_table::set_obj_type_context ( const std::string & ctxt )

inline

set context passed to the object provider

Note: if context is not defined, an empty string is passed to the object provider

◆ set_obj_type_provider()

void html_form_dynamic_table::set_obj_type_provider ( const html_form_dynamic_table_object_provider * provider )

define a object provider

Parameters

[in] provider the object provider. when needed by this dynamic table, the object provider will be asked to create a new object of type "num", the argument of html_form_dynamic_table_object_provider::provide_object_of_type() for num = 0 the object type provided by the first call to add_obj_type(), num = 1 correspond to the type of object which label has been provide by the second time add_obj_type() was called. before adding types of objects that will be proposed to the web user, an object provider (and only one) must be recorded calling this method

Note: the object provider is not memory managed by the "this" object and must survive during the whole life of "this".; only one and same provider must address all the possible type of object to build. Any previously added provider is replaced by the one give here.

The documentation for this class was generated from the following files:

html_form_dynamic_table.hpp
html_form_dynamic_table.cpp

Classes

Public Member Functions

Static Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ html_form_dynamic_table()

Member Function Documentation

◆ add_line()

◆ add_obj_type()

◆ clear_json()

◆ inherited_get_body_part()

◆ load_json()

◆ new_css_library_available()

◆ on_event()

◆ save_json()

◆ set_obj_type_context()

◆ set_obj_type_provider()
