html_menu Class Reference

class html_menu shows a menu and provides events to act on other objects More...

#include <html_menu.hpp>

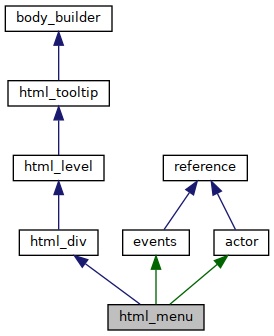

Inheritance diagram for html_menu:

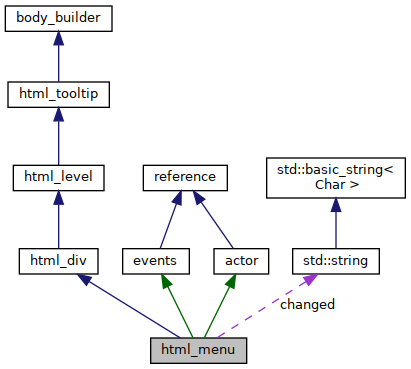

Collaboration diagram for html_menu:

Public Member Functions
	html_menu ()
	constructor
	html_menu (const html_menu &ref)=delete
	html_menu (html_menu &&ref) noexcept=delete
html_menu &	operator= (const html_menu &ref)=delete
html_menu &	operator= (html_menu &&ref) noexcept=delete
	~html_menu ()
	destructor
void	add_entry (const std::string &label, const std::string &tag)
unsigned int	get_current_mode () const
void	set_current_mode (unsigned int mode, bool force=false)
unsigned int	get_previous_mode () const
	returns the reference of the previous mode (the mode that was selected before current mode)
std::string	get_current_tag () const
	return the tage of the currently selected item
void	set_current_tag (const std::string &tag)
	set the current selected mode giving its tag
std::string	get_previous_tag () const
	get previous tag
std::string	get_current_label () const
	get current label (what is shown to the user)
void	record_actor_on_event (actor *ptr)
	modified wrapper from class events for our inherited classes
virtual void	on_event (const std::string &event_name) override
	inherited from class actor More...
Public Member Functions inherited from html_div
	html_div (const html_div &ref)=delete
	html_div (html_div &&ref) noexcept=delete
html_div &	operator= (const html_div &ref)=delete
html_div &	operator= (html_div &&ref) noexcept=delete
Public Member Functions inherited from html_level
	html_level (const html_level &ref)=delete
	html_level (html_level &&ref) noexcept=delete
html_level &	operator= (const html_level &ref)=delete
html_level &	operator= (html_level &&ref) noexcept=delete
void	adopt_static_html (const std::string &html)
	used in concurrency with body_builder::adopt()
void	clear_children ()
	clear all adopted data
Public Member Functions inherited from html_tooltip
	html_tooltip ()
	html_tooltip (const html_tooltip &ref)=default
	html_tooltip (html_tooltip &&ref) noexcept=delete
html_tooltip &	operator= (const html_tooltip &ref)=default
html_tooltip &	operator= (html_tooltip &&ref) noexcept=delete
const std::string &	get_tooltip () const
	get the helper string to show as popup
void	set_tooltip (const std::string &helper)
	set the helper to the tooltip (helper popup)
Public Member Functions inherited from body_builder
	body_builder ()
	constructor
	body_builder (const body_builder &ref)
	copy constructor More...
	body_builder (body_builder &&ref) noexcept=delete
	move constructor More...
body_builder &	operator= (const body_builder &ref)
	assignment operator drops all existing children More...
body_builder &	operator= (body_builder &&ref) noexcept=delete
	move operator More...
virtual	~body_builder ()
	the (virtual) destructor
void	set_prefix (const chemin &prefix)
void	adopt (body_builder *obj)
bool	is_adopted () const
	whether the object has currently a parent (= is adopted)
void	foresake (body_builder *obj)
void	set_visible (bool mode)
	ask for the object to become visible in HTML page or temporarily hidden More...
bool	get_visible () const
	returns the current visible status of the object More...
bool	get_visible_recursively () const
	return the effective visible status of an object taking into account all of ancestors that adopted it
void	add_css_class (const std::string &name)
	set this object with a additional css_class (assuming it is defined in a css_library available for this object)
void	add_css_class (const css_class_group &cg)
	set this object with an additional set of css_classes (assuming they are all defined in a css_library available for this object)
bool	has_css_class (const std::string &name) const
	check the presence of the given class name
void	remove_css_class (const std::string &name)
	remove the provided css_class name from the list of css_class names this object has been assigned to
void	remove_css_class (const css_class_group &cg)
	remove the provided css_class_group from the list
void	clear_css_classes ()
	clear the whole list of css_class names
const std::set< std::string > &	get_css_classes_as_a_set () const
	provide the list of css_class names that this object has been set with
css_class_group	get_css_class_group () const
	provide the list of css_class names as a css_class_group
std::string	get_css_classes (const std::string &extra="") const
	return the class_name as inlined css, suitable to be added in a html marker More...
void	define_css_class_in_library (const css_class &csscl)
void	define_css_class_in_library (const std::string &name, const css &cssdef)
bool	is_css_class_defined_in_library (const std::string &name) const
	check whether a css_class of given name already exists in a reachable css_library
std::string	get_body_part (const chemin &path, const request &req)
void	ignore_body_changed_from_my_children (bool mode)
	ignore my_body_part_has_changed() invoked from adopted children and myself More...
bool	get_ignore_body_changed_from_my_children () const
	get the current status of ignore_body_changed_from_my_children()
void	set_no_CR (bool no_cr=true)
	ask for the implementation not to add a new line after this control More...
void	assign_anchor (bool mode)
	assign an anchor to this object (the object's inherited_get_body_part() will be wrapped into an HTML anchor: ) More...
std::string	get_assigned_anchor () const
	return the anchor value that has been assiged to this object (without the leading #) More...
virtual void	bind_to_anchor (const std::string &val)
	ask inherited components to use this anchor in case they redirect to an new URL or generate new URLs within their body part. More...

Static Public Attributes
static const std::string	changed = "html_menu_changed"
	the available event for this class

Protected Member Functions
virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited from body_builder More...
virtual void	new_css_library_available () override
	inherited from body_builder, used to defines the css_class/css_selectors used by this class More...
virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited from body_builder More...
Protected Member Functions inherited from html_level
virtual void	has_adopted (body_builder *obj) override
	inherited from body_builder More...
virtual void	will_foresake (body_builder *obj) override
	inherited from body_builder More...
void	reset_read_next ()
bool	read_next (bundle &bdl) const
	return false if bdl could not be set (nor more entry to read)
std::string	get_body_part_from_children_as_a_block (const chemin &path, const request &req)
virtual std::string	inherited_get_body_part (const chemin &path, const request &req) override
	inherited from body_builder More...
Protected Member Functions inherited from html_tooltip
virtual void	new_css_library_available () override
	inherited from body_builder More...
virtual void	has_adopted (body_builder *obj)
	inherited from body builder More...
std::string	get_tooltip_body_part () const
Protected Member Functions inherited from body_builder
virtual std::string	inherited_get_body_part (const chemin &path, const request &req)=0
	implementation of get_body_part() method for inherited classes More...
void	my_body_part_has_changed ()
	let a class record a change in what inherited_get_body_part() would return if it was called again with the same request More...
virtual void	my_visibility_has_changed ()
	available for inherited class to be informed when their visibility changes More...
bool	has_my_body_part_changed () const
	obtain the body_part changed status More...
chemin	get_path () const
	return the path of 'this' according to its descent in the body_builder tree of adopted children
std::string	get_recorded_name () const
void	store_css_library ()
	this creates a css_library accessible from adopted objects to hold html class definitions More...
bool	has_local_css_library () const
	return true if this object has a css_library locally stored (not from a adopter object)
std::unique_ptr< css_library > &	lookup_css_library () const
	lookup toward registered parent body_builder object for the closest stored css_library More...
std::string	get_body_part_from_target_child (const chemin &path, const request &req)
std::string	get_body_part_from_all_children (const chemin &path, const request &req)
virtual void	path_has_changed ()
	For inherited classes, called when the path has changed,. More...
virtual void	has_adopted (body_builder *obj)
	Be informed that a new child has been adopted. More...
virtual void	will_foresake (body_builder *obj)
	Be informed that a child is about to be foresaken. More...
virtual void	has_been_adopted_by (body_builder *obj)
	Be informed that we have been adopted by obj, our new parent.
virtual void	will_be_foresaken_by (body_builder *obj)
	Be informed that we are about to be foresaken by obj, our soon former parent.
virtual void	css_classes_have_changed ()
	Be informed about css class modification. More...
virtual void	new_css_library_available ()
unsigned int	size () const
	access to adopted childs
body_builder *	operator[] (unsigned int i)
	access to adopted childs
body_builder *	get_parent () const
	return the parent object or nullptr if no object has adopted this object
template<class T >
void	closest_ancestor_of_type (T *&ancestor)
	access to the closest ancestor (parent) matching (dynamic_cast) the provided type More...
void	orphan_all_children ()
	orphan all adopted children
bool	get_no_CR () const
	true if it has been requested no to add Carriage Return after the HTML object
Protected Member Functions inherited from events
virtual void	broken_peering_from (reference *obj) override
	inherited from class reference More...
void	register_name (const std::string &name)
	add a new event for actors to register against
void	unregister_name (const std::string &name)
	remove an event and remove all actors that registed on it
void	rename_name (const std::string &old_name, const std::string &new_name)
	rename an event and keep all existing peering to this new event More...
void	act (const std::string &name)
	trigger a given event
	events (const events &ref)
	copy constructor More...
	events (events &&ref) noexcept(false)=default
events &	operator= (const events &ref)=default
events &	operator= (events &&ref) noexcept(false)
void	record_actor_on_event (actor *ptr, const std::string &name)
	record an actor for an given event
Protected Member Functions inherited from reference
virtual void	broken_peering_from (reference *obj)
	to be informed when a peer has broke the peering with me More...
void	reset_read_peers () const
	reset the peers reading
bool	read_next_peer (reference *&peer) const
	reference ()
	usual constructor
	reference (const reference &ref)
	copy constructor More...
	reference (reference &&ref) noexcept(false)
	move constructor (only operational for objects without peering) More...
reference &	operator= (const reference &ref)
	assignment operator (only operational for objects without peering) More...
reference &	operator= (reference &&ref) noexcept(false)
	move assigment operator More...
virtual	~reference ()
	destructor
void	peer_with (reference *obj)
	method used to create a relation between two objects More...
void	break_peer_with (reference *obj)
	break the peering with the object given as argument
bool	is_peer (reference *obj) const
	whether a peering exists with that object
bool	is_empty () const
	whether the current object has peering
unsigned int	size () const
	the number of peers
Protected Member Functions inherited from actor
	actor (const actor &ref)=default
	actor (actor &&ref) noexcept(false)=default
actor &	operator= (const actor &ref)=default
actor &	operator= (actor &&ref) noexcept(false)
virtual void	on_event (const std::string &event_name)=0
	implementation in inherited class of the action triggered by the event given in argument More...

Detailed Description

class html_menu shows a menu and provides events to act on other objects

class html_menu provides a menu of choices to dynamically change another part of the html user interface upon change the event "changed" is generated

Member Function Documentation

add_entry()

void html_menu::add_entry	(	const std::string &	label,
		const std::string &	tag
	)

add an entry in the menu

Parameters

[in]	label	is any text that will be showed to the user
[in]	tag	is to programmatically change the selected item (not translatable as the label)

Note

first added entry will get the index (or mode) zero, next added entry will have index 1, adding an empty string makes a non selectable space between buttons.

building the body_builder tree

get_current_mode()

unsigned int html_menu::get_current_mode ( ) const

inline

returns the reference of the current mode

Returns

the selected item in the order of addition using add_entry starting from 0: First add_entry gives item number 0, second gives 1, etc.

inherited_get_body_part()

string html_menu::inherited_get_body_part ( const chemin &  path, const request &  req  )

overrideprotectedvirtual

inherited from body_builder

Reimplemented from html_div.

new_css_library_available()

void html_menu::new_css_library_available ( )

overrideprotectedvirtual

inherited from body_builder, used to defines the css_class/css_selectors used by this class

Reimplemented from html_tooltip.

on_event()

void html_menu::on_event ( const std::string &  event_name )

overridevirtual

inherited from class actor

Implements actor.

set_current_mode()

void html_menu::set_current_mode	(	unsigned int	mode,
		bool	force = false
	)

set html field accordingly to the given mode

Parameters

[in]	mode	is the mode to set, it start from 0
[in]	force	is set to true, will never take into consideration the current mode and avoid changing if the new mode is the same

all is fine, we can go on modifying the objects

---

The documentation for this class was generated from the following files:

• html_menu.hpp
• html_menu.cpp
